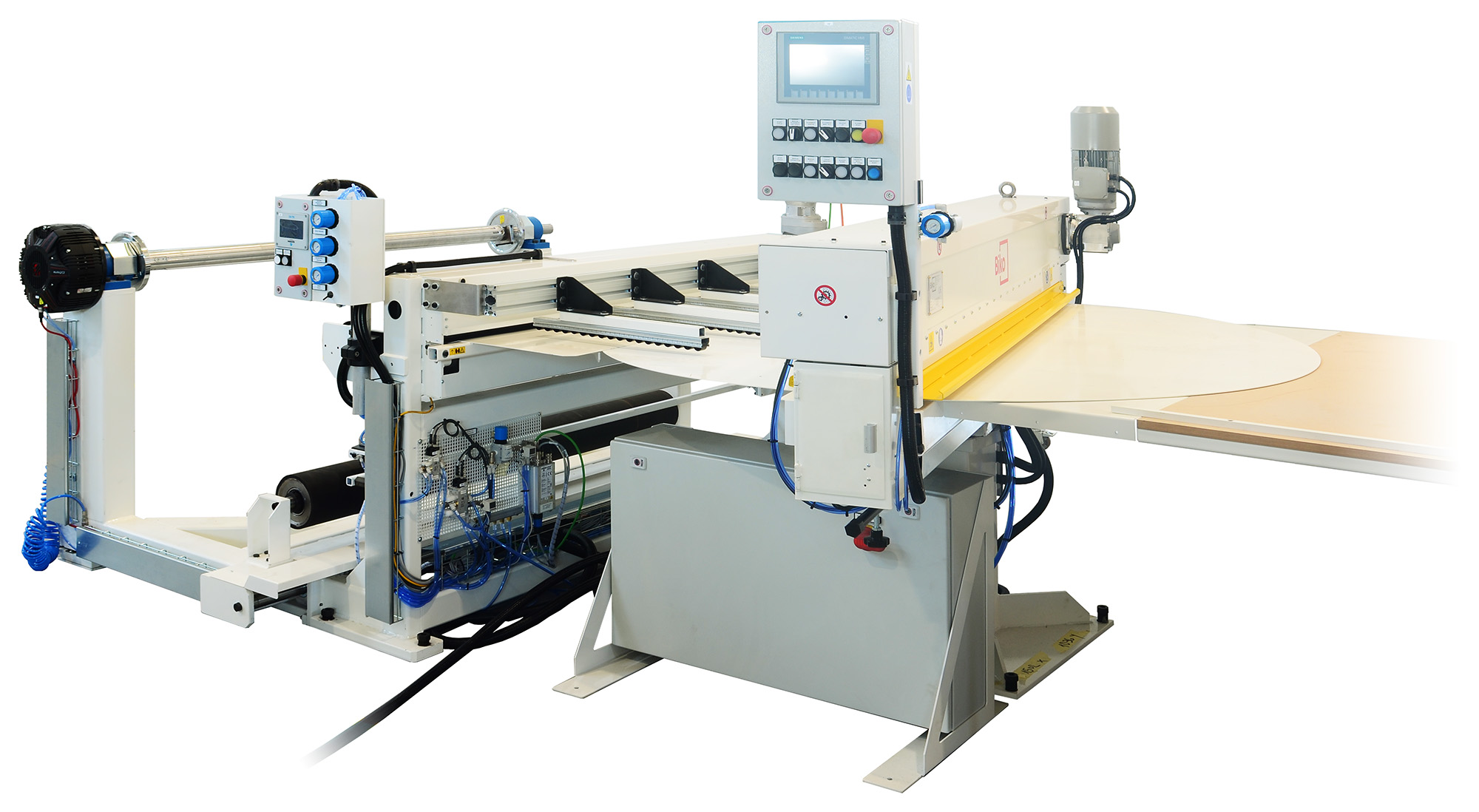

Semi-Automatic Cut-to-Length Machine Type BTFW-AUS
Auto-Feed Cut-to-Length Machine
The cut-to-length machine type BTFW-AUS is designed to cut wide belts of abrasive paper and cloth having a maximum width of 1650 mm (2050 mm also available). Possibility to perform both straight and wave cuts. BTFW-AUS is a machine for large series, suitable for converters producing on a medium-large scale. The material is automatically pushed to the preset length; the final adjustment and alignment is performed manually; the pneumatic holding bar is lowered, then the material is automatically stretched and cut. After cutting, the next belt is pushed through the machine
Technical Data
- Useful material width 1650 mm or 2050 mm
- Unwinding station for rolls up to 1200 mm dia. and 2000 kg of weight
- Unwinding pneumatic expanding aluminum shaft 3" dia.
- Pneumatic unwinding brake, manually adjustable
- Feeding by double motorized roll system
- Feeder brings the web up to the desired length
- Length accuracy must be controlled by operator before cutting
Options
- Digital angle measuring device
- Output collecting table
- Automatic alignment of the unwinding material
Size and Power
- Overall machine dimensions (without collecting table: 3.0 x 2.9 x 1.8 m
- Approx. weight: 2,100 kg
- Installed power: 3 kW
- Air consumption: 0.5 m3/h
