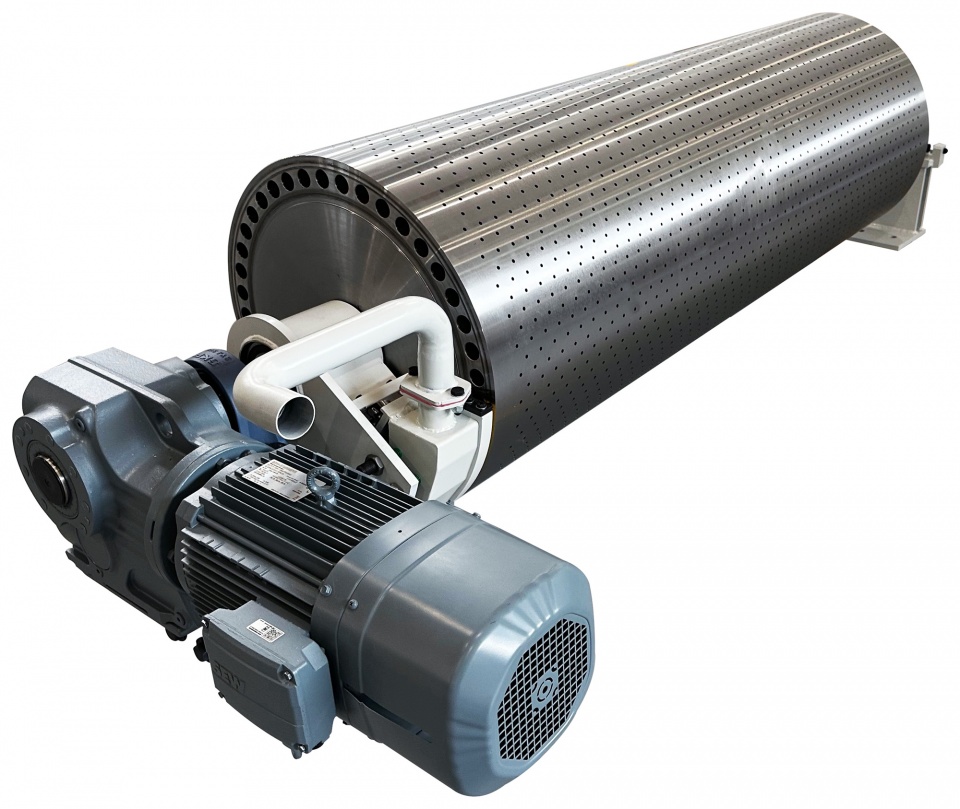

The Suction Drum (Vacuum Roll) is designed to manage max web widths of 1650 or 2050 mm. Also narrower widths are possible.

To optimize vacuum surface on different web widths, the roll can be realized with adjustable vacuum area.

Any type of material could be managed with a total web pulling force up to 2500 N. Other pulling force values can be realized upon request.

Technical Data

  • Applied web pulling force up to 2500 N
  • Drum external diameter: 600 mm or 900 mm
  • Standard speed up to 60 m/min. Other speeds can be obtained upon request
  • Also available with adjustable vacuum area. It can be adjusted with manual tool, on small width drums, or motorized for the full width systems
  • Cardanic shaft for motor-drum connection

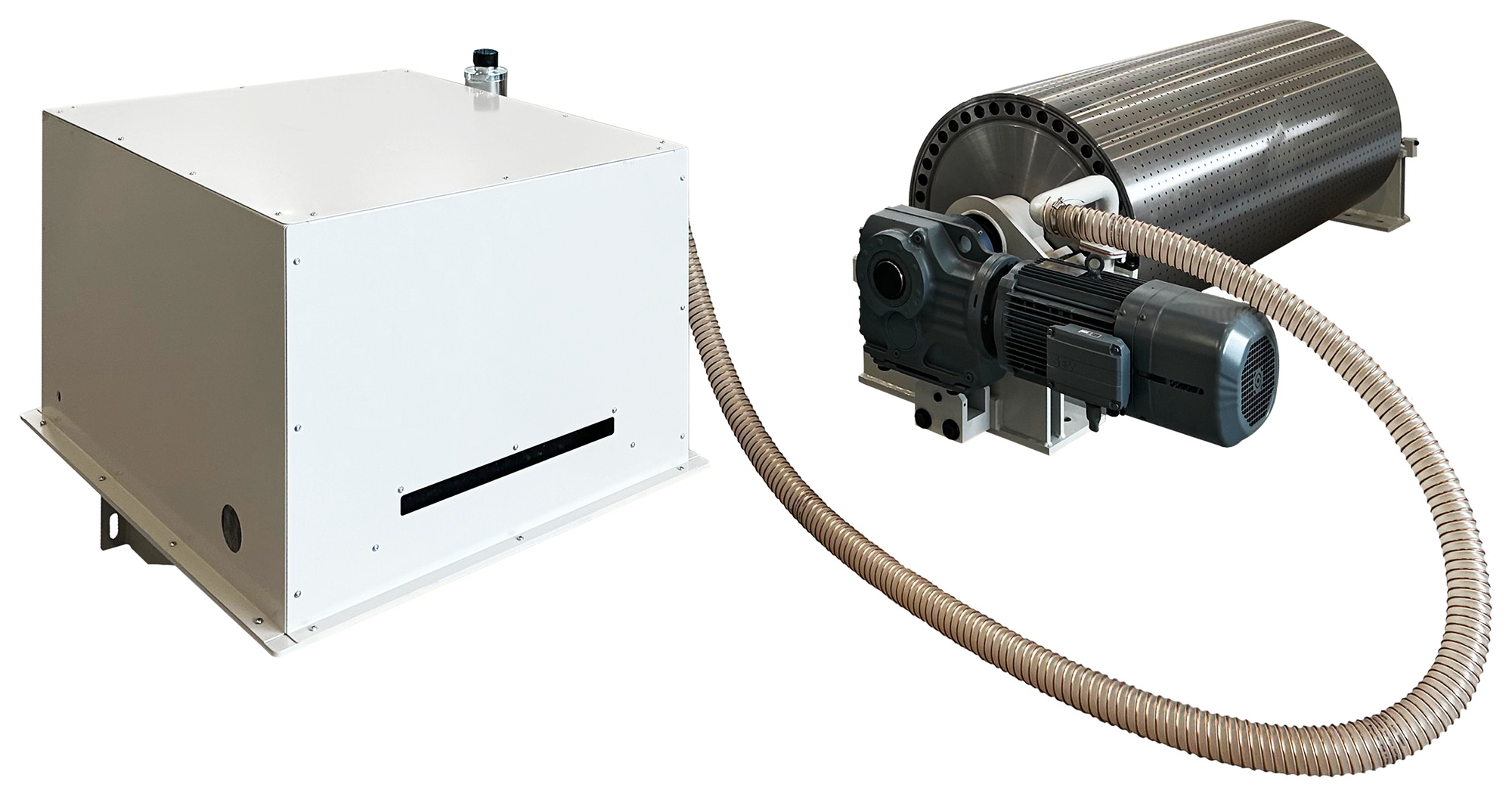

  • Vacuum pump, including silencer and pressure display
