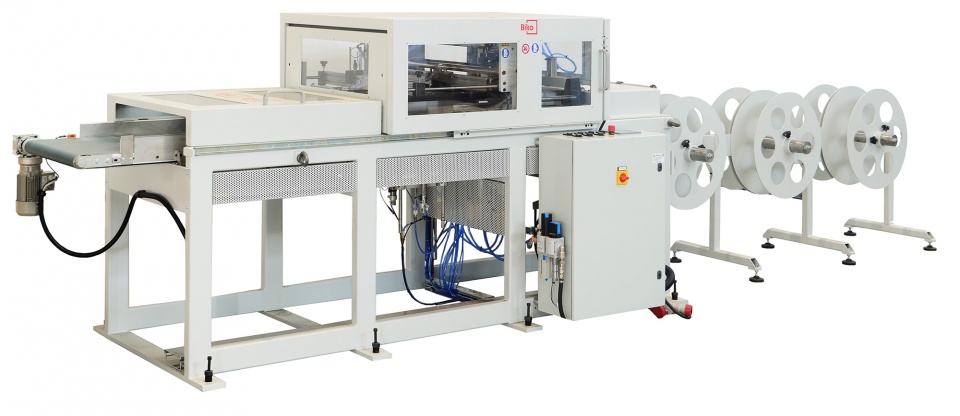

The sheet cutter type TF2 is designed to cut sheets of abrasive paper and cloth out of a abrasive roll. TF2 is a machine for a medium production: it can cut small quantities as well as a series of sheets.

Technical Data

  • Double unwinder for 230 mm wide rolls
  • Maximum diameter of the roll 600 mm
  • Cutting length can be regulated from 100 to 300 mm
  • Pneumatic feeding
  • Shear cut with round knife on straight counterknife
  • Productivity: up to 30 sheets/min (280mm x 230mm)
  • Automatic ejection of the sheets


  • Stacking device with automatic stop when preset number of sheets is reached

Size and Power

  • Overall machine dimensions: 3.5 x 1.2 x 1.6 m
  • Approx. weight: 700 kg
  • Installed power: 0.5 kW
