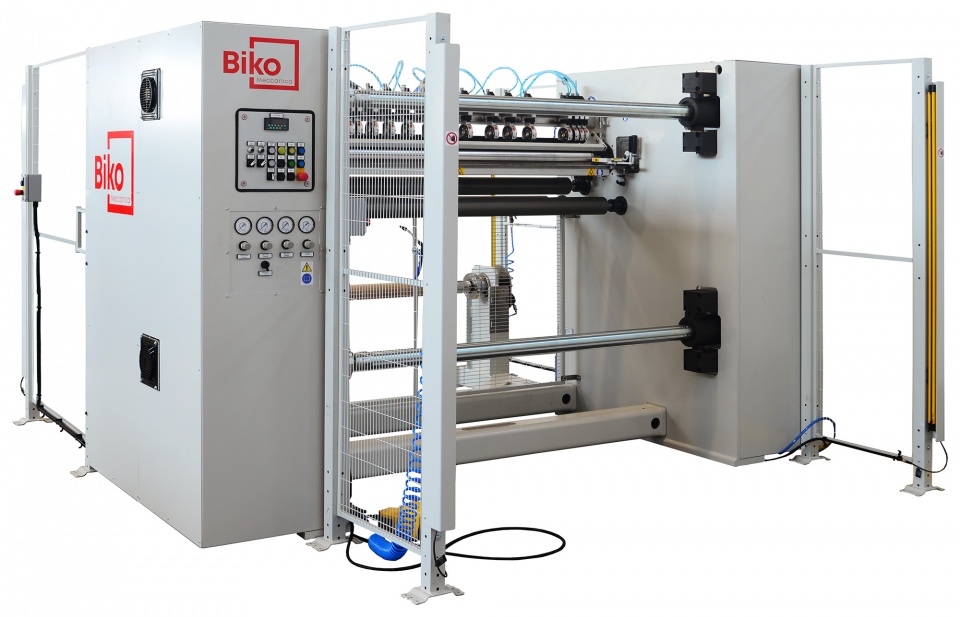

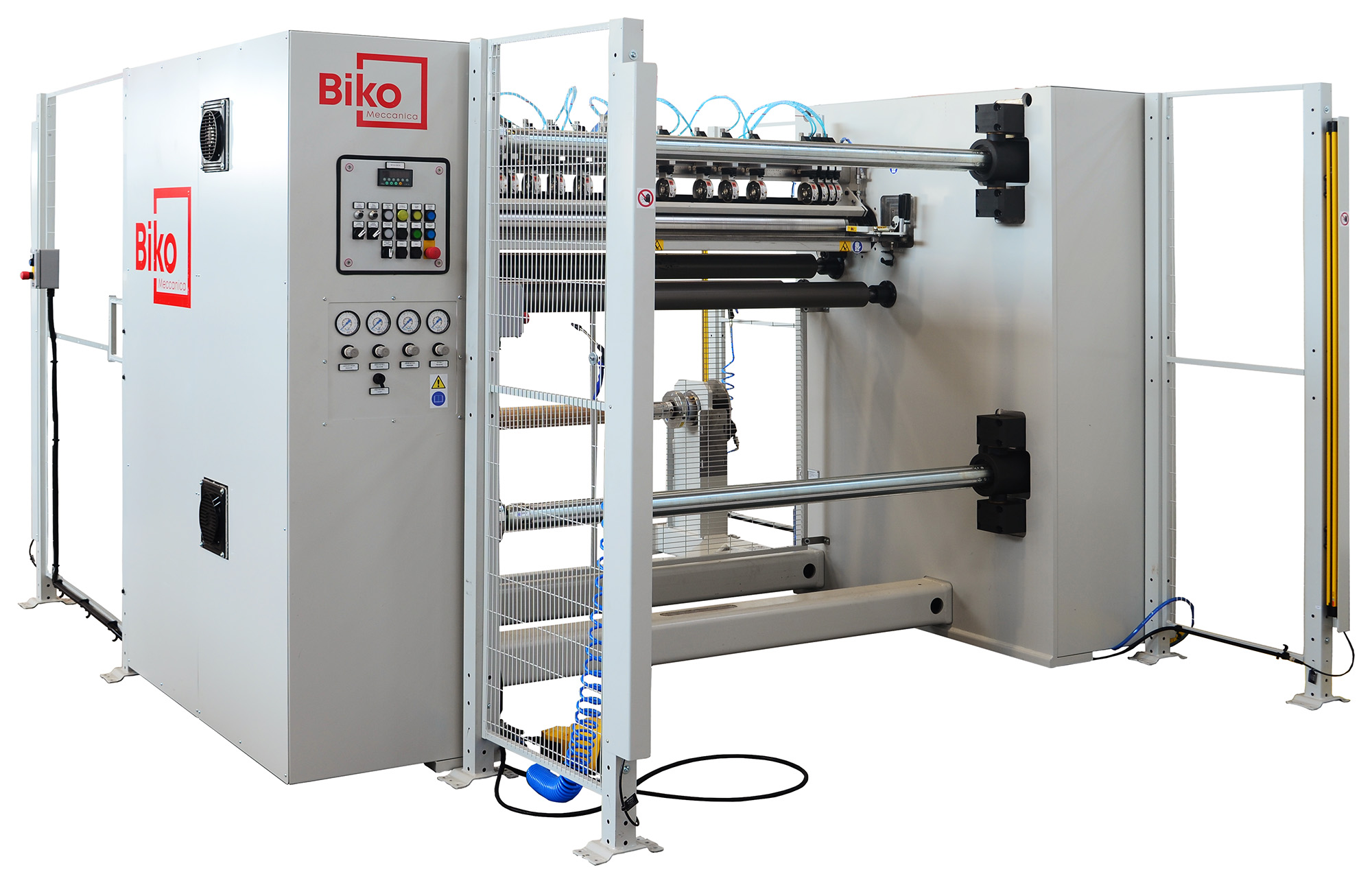

Jumbo Roll Slitter Type TRW

Foam Slitter

The roll slitter machine type TRW is designed to cut foam materials with a maximum cutting width of 1650 mm. A 2050 mm width version is also available. The TRW machine is suitable for converters with discrete but not very automatic production.

Technical Data

  • Variable speed up to 50 m/min
  • Expanding shafts on both unwinder and rewinder sides
  • The unwind shaft can be shifted sideways, by hand wheel
  • Pneumatic unwinding brake, adjustable
  • Unwinder maximum diameter 1000 mm (3” or 4” shafts)
  • Rewinders maximum diameters 1000 mm
  • Rewinding in both directions
  • Easy to operate rewinders thanks to flag opening shafts

Knifeholders

  • Penumatic knifeholders with positioning by means of manual fast locking

Options

  • Speed up to 80 m/min
  • Meter counter display with automatic slow-down and stop
  • Automatic web alignment (edge guide) on unwinder
  • Automatic brake tension control
  • Cross cutter

Size and Power

  • Overall machine dimensions (TRW-1650 model): 3.3 x 3.7 x 2.3 m
  • Approx. weight: 3,300 kg
  • Installed power: 7 kW
  • Air consumption: 10 l/cycle
