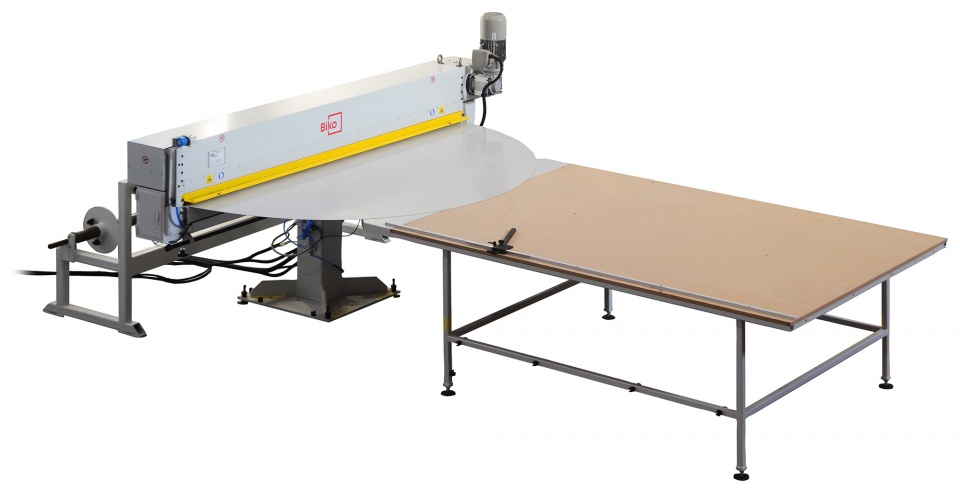

Manual Cut-to-Length Machine Type BTFW

Straight and Wave Cut

The cut-to-length machine type BTFW is designed to cut wide belts of abrasive paper and cloth having a maximum width of 1650 mm (2050 mm also available). Possibility to perform both straight and wave cuts.

Technical Data

  • Max. cut length (joint length) 2000 mm (if required, 2300 mm also possible)
  • Possibility to perform both straight and wave cuts
  • Pneumatic device of cross cut by means of a steel rule die which cuts on the backing side
  • Quick change of the bladeholder
  • Joint angle adjustable between 90° and 55°

Options

  • Digital angle measuring device
  • Simple unwinding system
  • Output collecting table
  • Belt alignment device for subsequent automatic splicing on wave/finger cuts on Biko SAJ-A and AWBL skiving machines

Size and Power

  • Overall machine dimensions:
    1.6 x 2.8 x 1.7 m (BTFW-1650 model, standalone)
    7.9 x 2.8 x 1.7 m (BTFW-1650 model, with unwinder and collecting table)
  • Approx. weight: 1,300 kg
  • Installed power: 1 kW
  • Air consumption: 0.5 m3/h
Manual Cut-to-Length Machine Type BTFW
